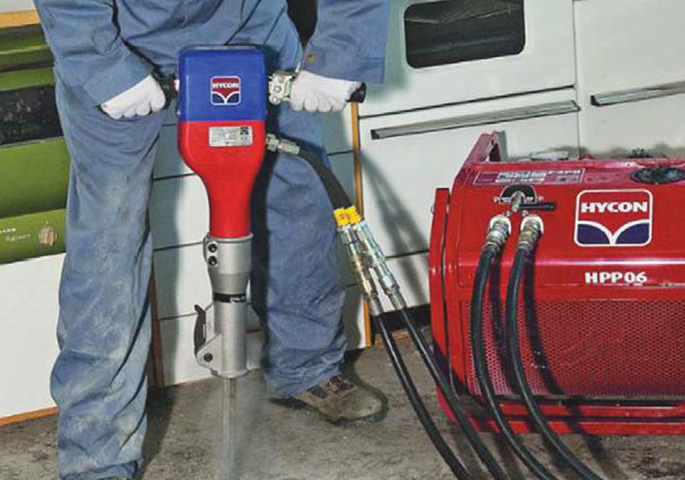

A good breaker works when you need it.
HYCON breakers are designed to give maximum power, durability and best operator comfort.
The breakers are designed to withstand blank firing. This is a unique feature.
They have high performance compared to weight and come standard with anti vibration handles.
The unique PROLINE handle offers the operator a vibration level down to as little as 4.8 m/s², which give maximum protection and less fatigue. The result is higher efficiency – you get more work done.
The breakers have very few wearing parts ensuring the lowest lifetime cost possible. A HYCON breaker gives you the best TCO (Total Cost of Ownership).
Quality is never an accident – it is always the result of intelligent effort.
Applications:

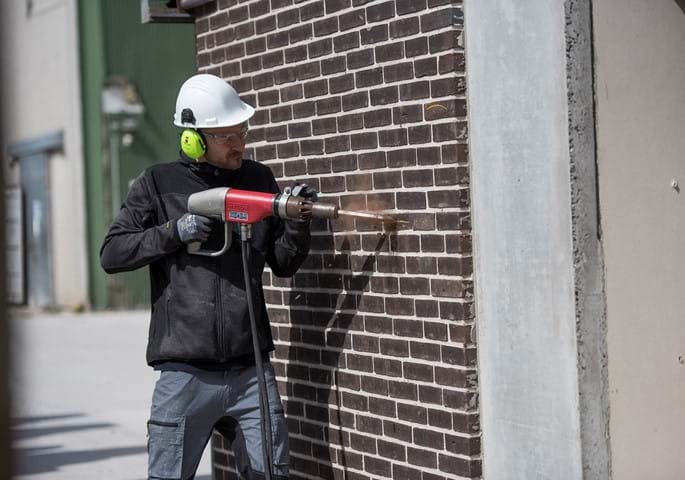

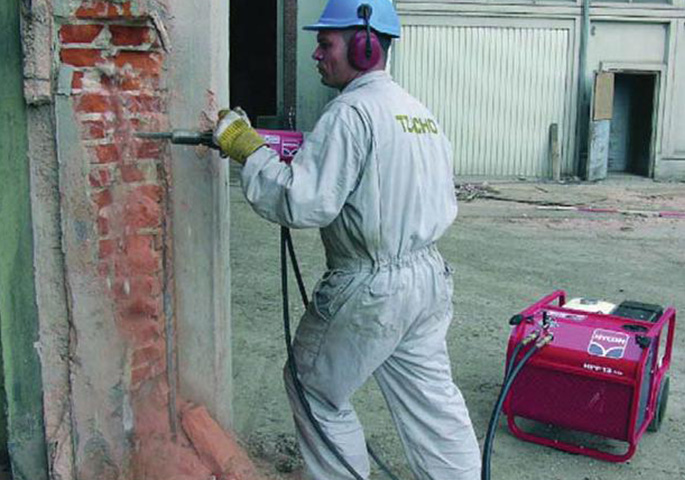

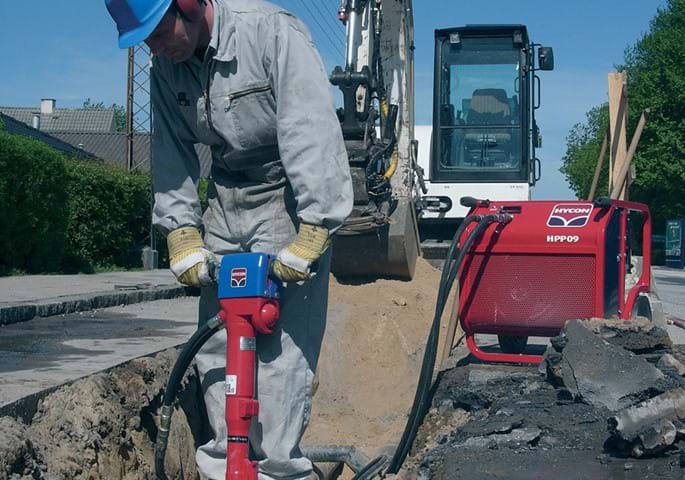

• Breaking light concrete and brickwork (LH11)

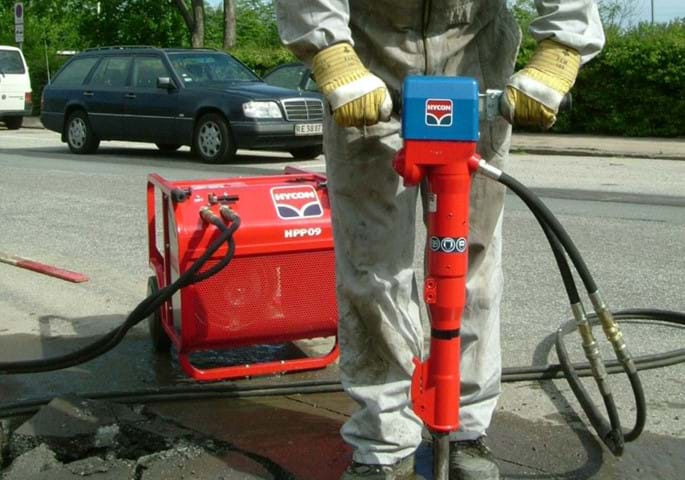

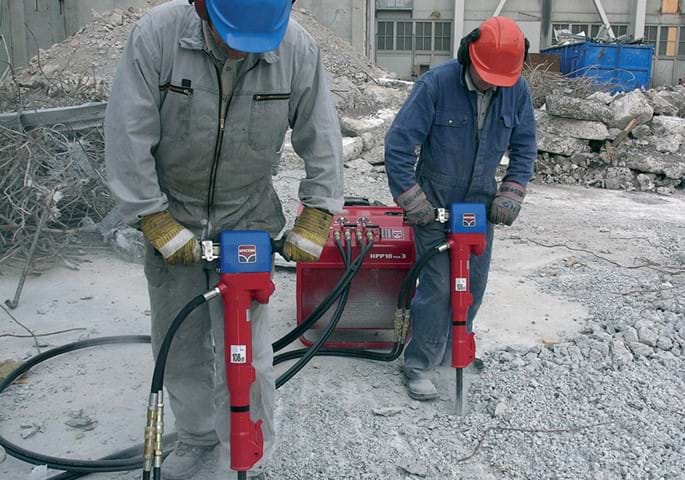

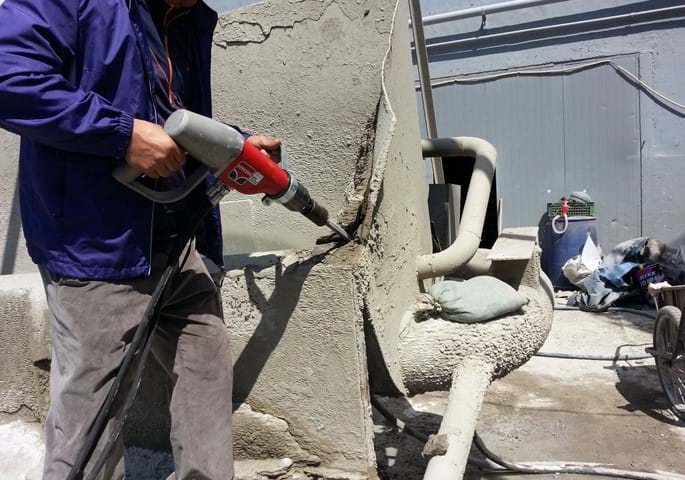

• Medium and hard materials as asphalt and concrete
Features:
• Low noise levels
• Slim design
• High power to weight ratio
• High back pressure (HBP) versions for skid steer connections
See also Parts and Services Catalogue:
• Working tools
• Chisel paste
• Oil flow dividers
• Extension hoses

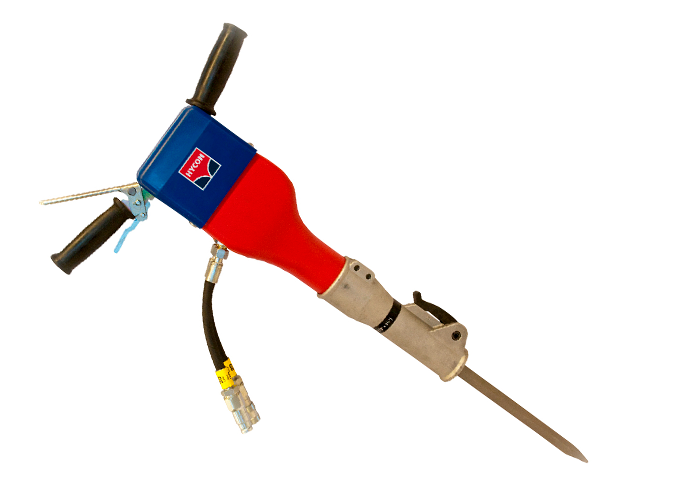

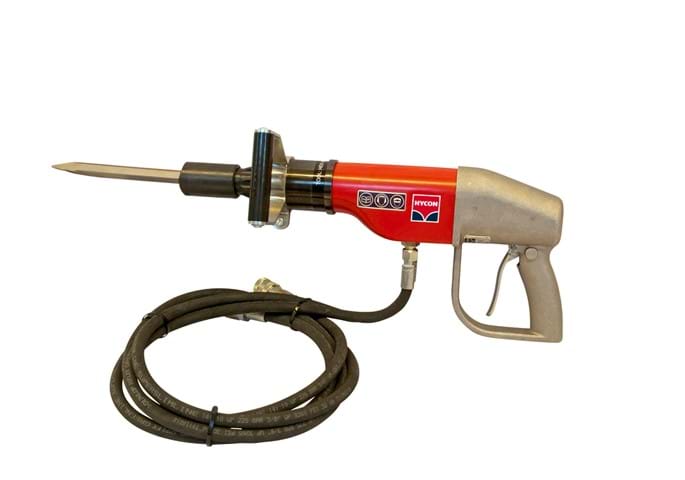

Breaker | HH10RV | HH15 | HH20 | HH23 | HH25 | HH27 | |
Weight | Kg | 9.9 | 16.8 | 22 | 23.5 | 25.8 | 27.4 |
Oil flow | l/min | 20 | 20 | 20 | 20/30 | 20/30 | 20/30 |
Max.pressure | bar | 160 | 160 | 160 | 160 | 160 | 160 |
Impact rate | bpm | 2100 | 1830 | 1560 | 1380 | 1380 | 1260 |
Vibration level | m/sec2 | 9.6 | 6.6 | 6.8 | 8.0 | 9.4 | 10.7 |
Shank size | mm. | 19×50 | 22×82 | 25×108 | 25×108 | 32×160 | 32×160 |
